Mileva 45

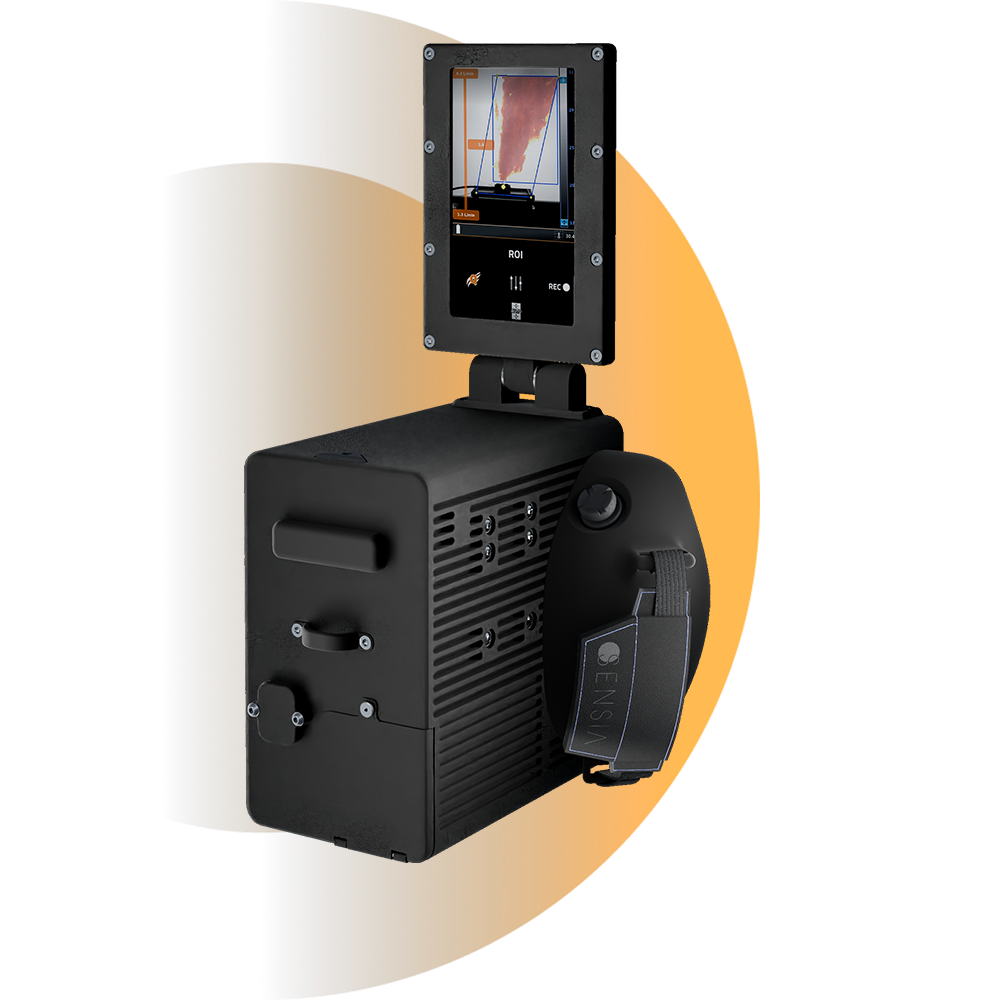

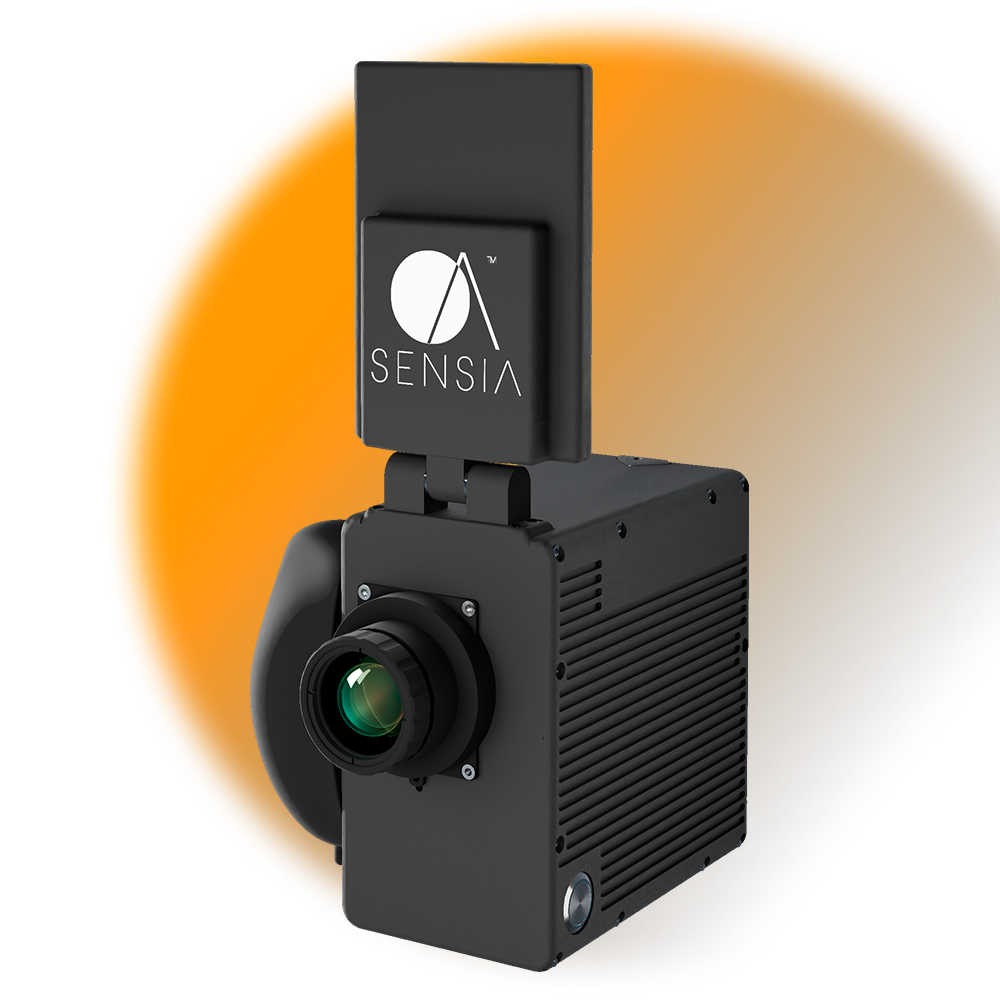

Mileva 45 is SENSIA’s latest model of quantitative optical gas imaging (QOGI) camera designed specifically for detecting even the smallest of carbon dioxide leaks. The Mileva 45 carbon dioxide leak detection OGI features a high-resolution, spectrally optimized detector capable of capturing fugitive CO emissions.
Mileva 45
Mileva 45 is SENSIA’s latest model of quantitative optical gas imaging (QOGI) camera designed specifically for detecting even the smallest of carbon dioxide leaks. The Mileva 45 carbon dioxide leak detection OGI features a high-resolution, spectrally optimized detector capable of capturing fugitive CO emissions.
Leak Rate
Quantification
High Resolution
& Bright Touchscreen
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
Leak Rate
Quantification
High Resolution
& Bright Touchscreen
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
Leak Rate
Quantification
High Resolution
& Bright Touchscreen
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
ATEX
Certification
ATEX
Certification
Specifications
Detector Type
Cooled, 640 x 512 px
Pixel Pitch (µm)
15 µm
Spectral Region (µm)
4.2 to 4.4 µm
Field of View (H×V, degrees)
35 mm
Zoom
Digital zoom
Thermal Sensitivity (NETD)
< 20 mK @ 40 ºC
Display Frame Rate (Hz)
60 Hz
Temperature Measurement Accuracy
± 1 ºC or 2% WIG
Scene Temperature Range
0 ºC to 250 ºC
MDLR for pure CO₂
3.24 g/h *
ΔT gas-background >5 ºC and orifice diameter 1/4”
Dedicated OGI Modes
IR, 5 x HSM, Q-mode
Visible Camera Resolution
Default: 640 x 480 px
Field of View (H×V, degrees)
46.2 x 59 º
Communication Interfaces
Wi-Fi (WLAN 2.4 GHz / 5 GHz)
Video Formats
.rlk (radiometric), .mp4
Memory Storage
SD Card (<128 Gb)
Battery
x3 battery packs
< 3 hours for each battery pack
Dual Charging Station:
110-240 VAC 50/60 Hz
GPS Accuracy
< 1.8 m CEP
Display
5” TFT LCD touch screen
1280 x 720 px
Included Software
RedLook Embedded
Data Export Formats
.rlk, .mp4, .json
Functionalities
Gas Detection & Quantification, Thermography
Reporting Tools
RedLook Reports
Dimensions (L×W×H, mm)
255 x 156 x 82 mm
Weight
2.70 kg
Tripod Mount
1/4” UNC
Operating Temperature Range (°C)
-20 ºC to 50 ºC
Storage Temperature Range (°C)
-40 ºC to 71 ºC
Certifications
CE Compliant
UNE EN IEC 61326‑1:2021
Integrated GPS receiver (Rx only)
ATEX II 3G Ex eC IIC T4 Gc
IP64 (EN 60529)
2011/65/EU compliant
2012/19/EU compliant
Gases Detected
Carbon Dioxide
Phosphine
Features Under Demand
Mileva 47
CO detection & quantification
Mileva 45 boasts an intuitive, ergonomic design and a bright, adjustable touch screen and forms part of our complete operator solution, RedLook.
RedLook is the powerful combination of our hardware, software and analytics that are made possible by our proprietary AI-powered infrared imaging technology.
By being part of RedLook, Mileva 45 users can detect and measure gas leaks with high-resolution and carry out advanced analyses with the help of our extensively trained artificial intelligence then effortlessly report on any findings.
