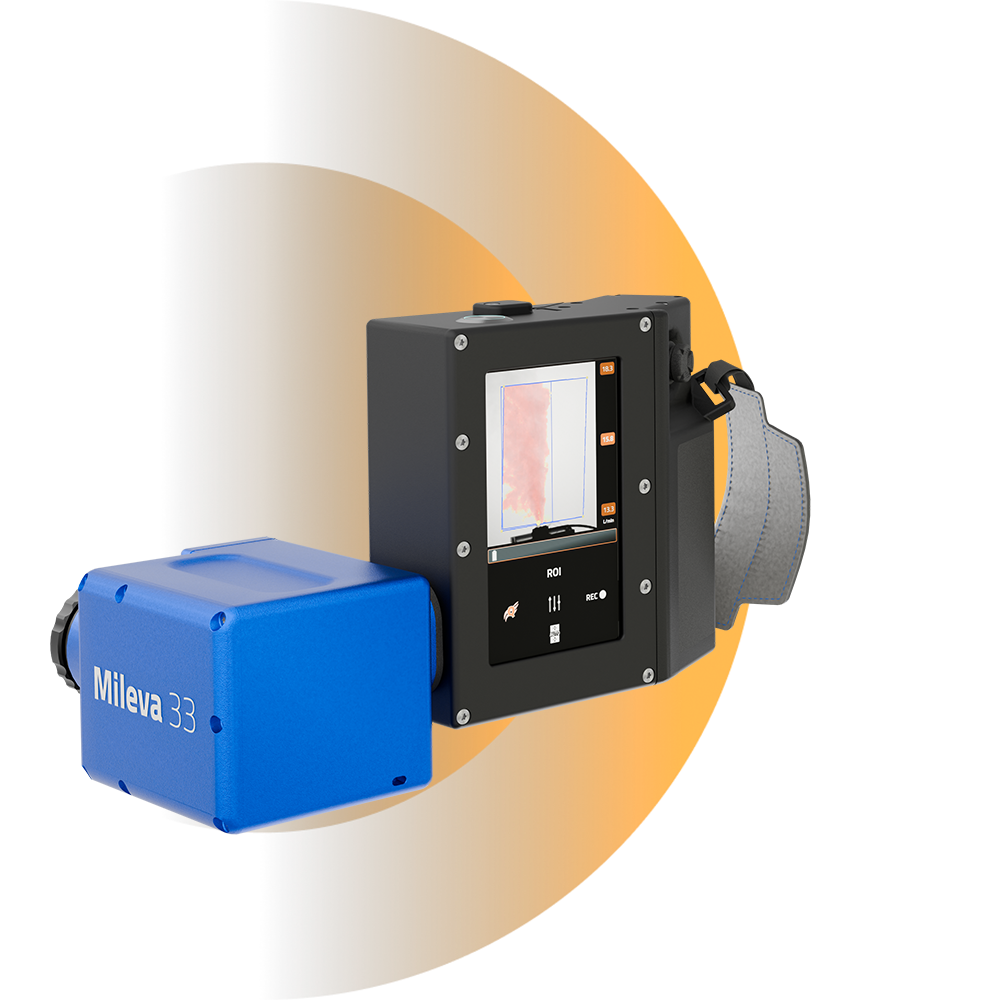

Mileva 33
Mileva 33 is the ideal QOGI for LDAR and detection and quantification of methane leaks with embedded AI-algorithms for best-in-class detection and leak rate quantification, a sleek, ergonomic design, GPS and Wi-Fi connectivity, and an effortless LDAR and LDAQ reporting suite.
Mileva 33
Mileva 33 is the ideal QOGI for LDAR and detection and quantification of methane leaks with embedded AI-algorithms for best-in-class detection and leak rate quantification, a sleek, ergonomic design, GPS and Wi-Fi connectivity, and an effortless LDAR and LDAQ reporting suite.
Leak Rate
Quantification
High Resolution
& Bright Touchscreen
Visible
& IR Camera
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
Leak Rate
Quantification
High Resolution
& Bright Touchscreen
Visible
& IR Camera
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
Leak Rate
Quantification
High Resolution
& Bright Touchscreen
Visible
& IR Camera
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
ATEX
Certified
EPA OOOOa/b/c
Compliant
EU Type 2
Capable
ATEX
Certified
EPA OOOOa/b/c
Compliant
EU Type 2
Capable
Specifications
FPA
Cooled 640 x 512 px
Pixel Pitch
15 µm
Spectral Region
3,2 to 3,4 µm
Field of View (H×V, degrees)
35 mm
Zoom
Digital Zoom
Thermal Sensitivity (NETD)
<20mK @ 40ºC
Display Frame Rate (Hz)
60 Hz
Temperature Measurement Accuracy
± 1 ºC or 2% WIG
Scene Temperature Range
0 ºC to 250 ºC
MDLR for pure CH₄
0,4 g/h*
ΔT gas-background >5 ºC and orifice diameter 1/4”
Dedicated OGI Modes
IR, 5 x HSM, Q-mode
Visible Camera Resolution
Default: 640 x 480 px
Field of View (H×V, degrees)
46.2 x 59 º
Communication Interfaces
Wi-Fi (WLAN 2.4 GHz / 5 GHz)
Video Formats
.rlk (radiometric), .mp4
Memory Storage
SD Card (<128 Gb)
Battery
x3 battery packs
<3 hours for each battery pack
Dual Charging Station:
110-240 VAC 50/60 Hz
GPS Accuracy
< 1.8 m CEP
Display
5” TFT LCD touch screen
1280 x 720 px
Included Software
RedLook Embedded
Data Export Formats
.rlk, .mp4, .json
Functionalities
Gas Detection & Quantification, Thermography
Reporting Tools
RedLook Reports
Dimensions (L×W×H, mm)
255 x 156 x 82 mm
Weight
2,7 kg
Tripod Mount
1/4” UNC
Operating Temp. Range (ºC)
-20°C to +50°C
Storage Temp. Range (ºC)
-40°C to +71°C
Certifications
CE Compliant
UNE EN IEC 61326‑1:2021
Integrated GPS receiver (Rx only)
ATEX II 3G Ex eC IIC T4 Gc
IP64 (EN 60529)
2011/65/EU compliant
2012/19/EU compliant
Gases Detected
Acetic Acid
Heptane
Benzene
Hexane
1,3-Butadiene
Methane
Butane
Methanol
Ethane
MEK
Ethanol
Octane
Ethyl Hexyl Acrylate
Pentane
Ethylene
Propane
Ethylene glycol
Propylene
Ethylbenzene
Toluene
Ethylene oxide
Turpentine
Formaldehyde
Our top-selling Mileva 33 makes LDAR and LDAQ campaigns as painless as possible. The camera boasts a rugged, ergonomic design and a bright touch screen, forming part of our complete operator solution, RedLook.
RedLook is the powerful combination of our hardware, software and analytics that are made possible by our proprietary AI-powered infrared imaging technology.
By being part of RedLook, Mileva 33 users can detect and measure gas leaks with high-resolution and carry out advanced analyses with the help of our extensively trained artificial intelligence then effortlessly report on any findings.
