Caroline Y

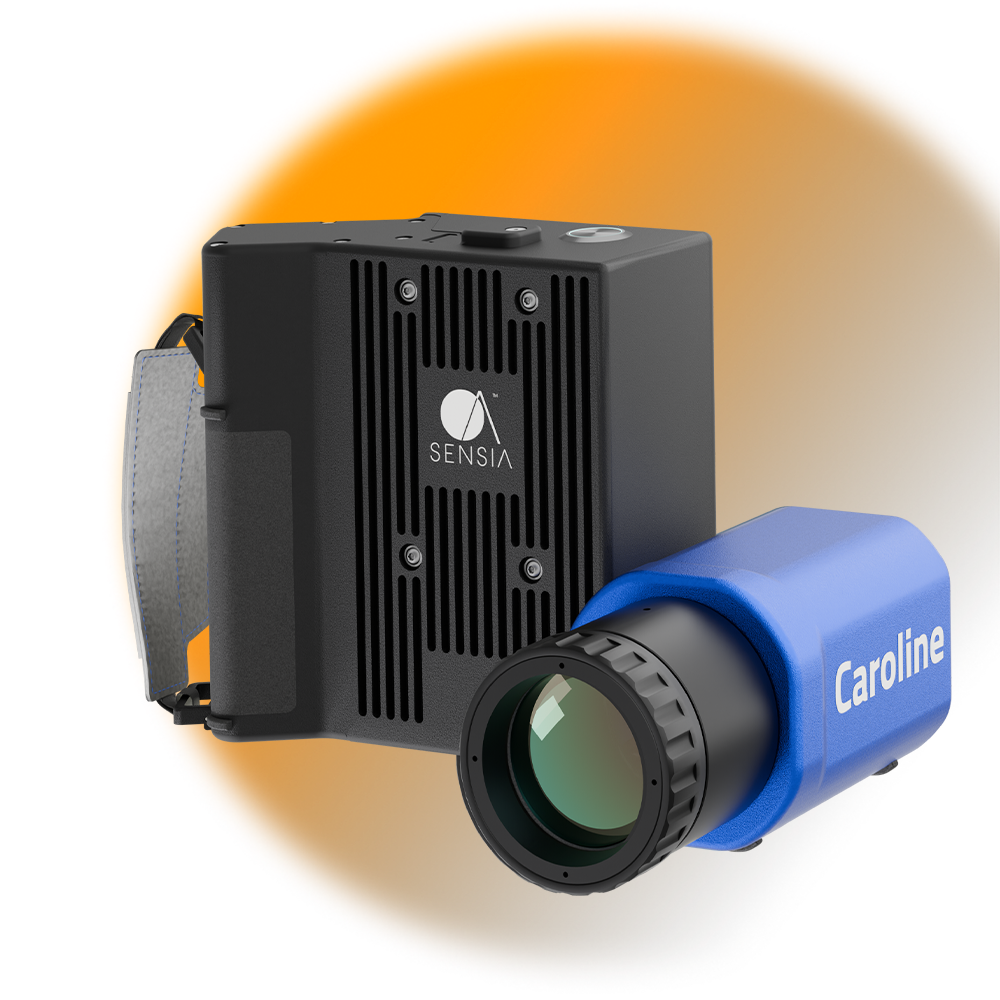

Caroline Y is SENSIA’s latest, cost-effective Quantitative Optical Gas Imaging (QOGI) camera for detection of fugitive emissions of methane, SO2, and many other gas leaks. Its high-resolution uncooled infrared detector can perform gas detection and quantification for a fraction of the cost of cooled infrared technology.
Caroline Y
Caroline Y is SENSIA’s latest, cost-effective Quantitative Optical Gas Imaging (QOGI) camera for detection of fugitive emissions of methane, SO2, and many other gas leaks. Its high-resolution uncooled infrared detector can perform gas detection and quantification for a fraction of the cost of cooled infrared technology.
Leak Rate
Quantification
Bright
Touchscreen
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
Leak Rate
Quantification
Bright
Touchscreen
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
Leak Rate
Quantification
Bright
Touchscreen
Wireless
Connectivity
Effortless
Reporting
Rugged & Ergonomic
Design
ATEX
Certification
EU Type 1
Capable
EPA OOOOa/b/c
Compliant
ATEX
Certification
EU Type 1
Capable
EPA OOOOa/b/c
Compliant
Specifications
Detector Type
Uncooled, 640 x 480 px
Pixel Pitch (µm)
17 µm
Spectral Region (µm)
6.5 to 8.5 µm
Field of View (H×V, degrees)
35 mm
Zoom
Digital zoom
Thermal Sensitivity (NETD)
< 35 mK @ 25 ºC
Display Frame Rate (Hz)
60 Hz
Temperature Measurement Accuracy
± 1 ºC or 2% WIG
Scene Temperature Range
0 ºC to 65 ºC
MDLR for pure CH₄
1.40 g/h *
ΔT gas-background >5 ºC and orifice diameter 1/4”
Dedicated OGI Modes
IR, 5 x HSM, Q-mode
Communication Interfaces
Wi-Fi (WLAN 2.4 GHz / 5 GHz)
Video Formats
.rlk (radiometric), .mp4
Memory Storage
SD Card (<128 Gb)
Battery
x3 battery packs
< 3 hours for each battery pack
Dual Charging Station:
110-240 VAC 50/60 Hz
GPS Accuracy
< 1.8 m CEP
Display
5” TFT LCD touch screen
1280 x 720 px
Included Software
RedLook Embedded
Data Export Formats
.rlk, .mp4, .json
Functionalities
Gas Detection & Quantification, Thermography
Reporting Tools
RedLook Reports
Dimensions (L×W×H, mm)
241 x 156 x 82 mm
Weight
2.40 kg
Tripod Mount
1/4” UNC
Operating Temperature Range (°C)
-20 ºC to 50 ºC
Storage Temperature Range (°C)
-40 ºC to 71 ºC
Certifications
CE Compliant
UNE EN IEC 61326‑1:2021
Integrated GPS receiver (Rx only)
ATEX II 3G Ex eC IIC T4 Gc
IP64 (EN 60529)
2011/65/EU compliant
2012/19/EU compliant
Gases Detected
Acetic Acid
R13B1
Acrolein
R123
Acrylic acid
R125
Ethyl hexyl acrylate
R134A
Methane
R417A
Nitrous oxide
R422A
Phenol
R508a (61%)
R12
Sulfur dioxide
R13
Features Under Demand
Detector frequency
9 Hz

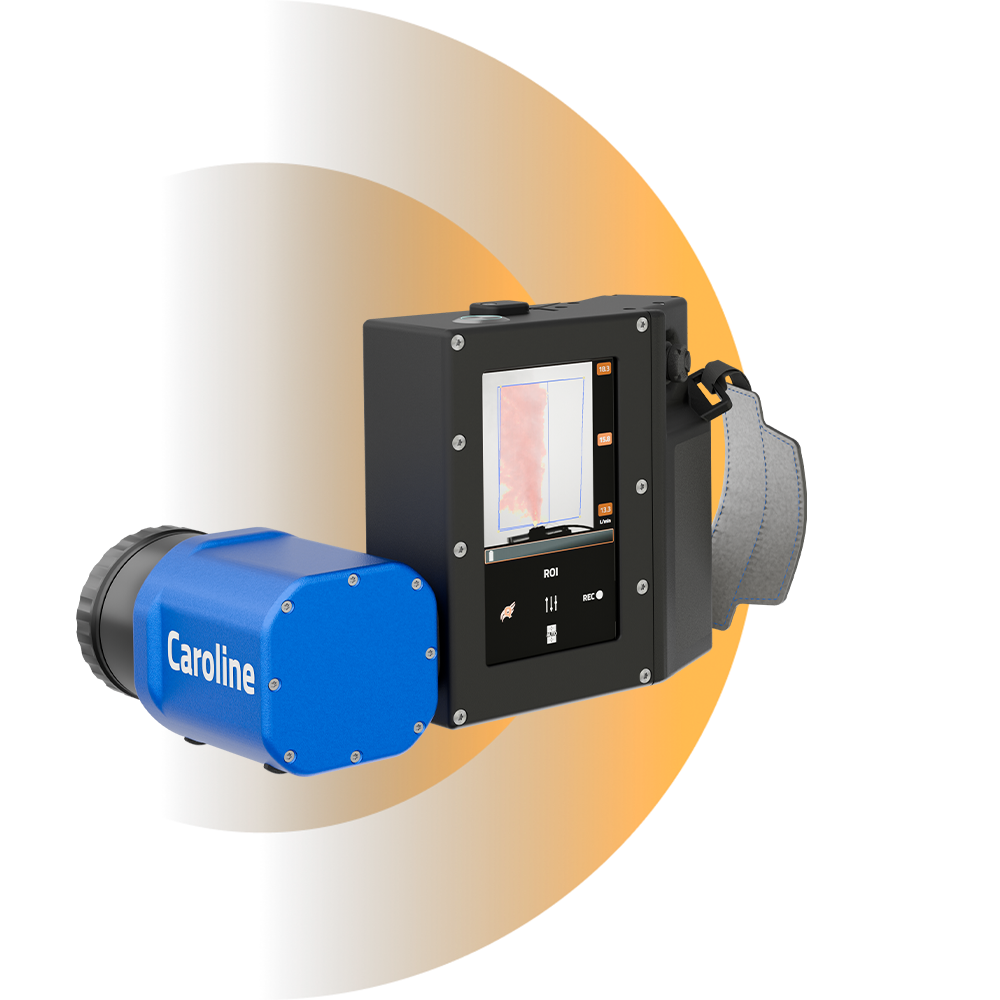

Caroline Y consists of an intuitive, ergonomic design and a bright, adjustable touch screen and forms part of our complete operator solution, RedLook.
RedLook is the powerful combination of our hardware, software and analytics that are made possible by our proprietary AI-powered infrared imaging technology.
By being part of RedLook, Caroline Y users can detect and measure gas leaks with high-resolution across wide areas and carry out advanced analyses with the help of our extensively trained artificial intelligence then effortlessly report on any findings.
